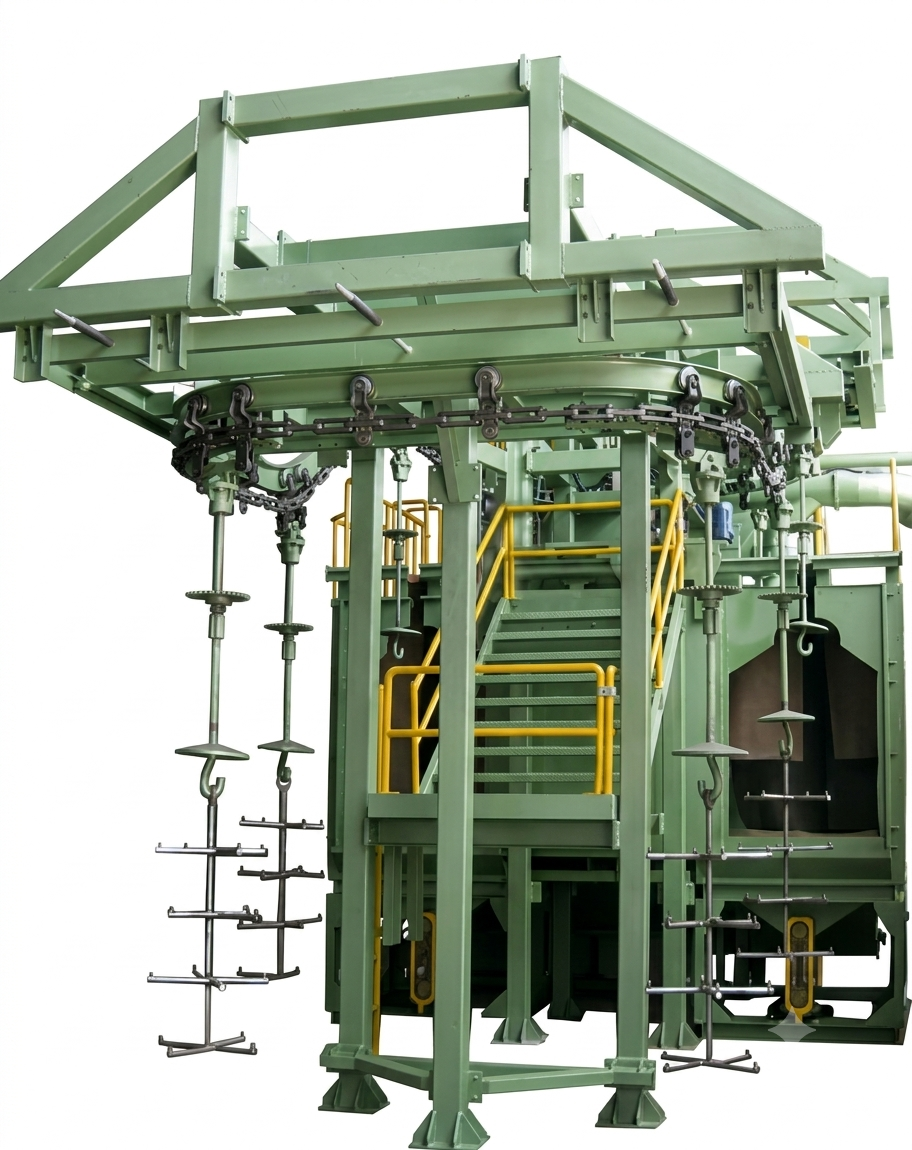

Hanger Loop Continuous Hanger Blasting System
Hanger Loop blasting machine is designed for continuous surface cleaning, descaling, deburring, and preparation of suspended workpieces. The hanger loop system supports efficient handling of complex, heavy, or irregular parts for stable and repeatable blasting results.
Product Overview
Hanger Loop machines are suitable for continuous or semi-continuous blasting operations where components are suspended on hangers and transported through the blasting chamber. This design is effective for parts with complex shapes, larger dimensions, or surfaces that require complete blasting coverage.
PT Ferro Servita provides equipment consultation, machine selection support, spare parts, and technical assistance to help customers achieve reliable production performance and consistent finishing results.
Main Advantages
Complete Coverage
Hanger movement supports thorough blasting coverage on complex workpieces.
Efficient Handling
Suitable for suspended parts, heavier components, and irregular shapes.
Process Efficiency
Helps improve cleaning speed, consistency, and preparation quality.
Technical Support
Supported by product consultation, spare parts, and after-sales assistance.
Technical Data
Product Specification
| Model Type | THL-8RA371-AD |
|---|---|
| Max. Diameter of Workpiece Hanger | 800 mm |
| Height of Workpiece Hanger | 1 100 mm |
| Max. Loading Weight per Hanger | 500 kg |
|
Average Cycle Time (e.g. cast iron workpieces) |
100 sec |
| Number of Blast Wheel & Capacity |
4 × 20 Hp (15 kW) 4 × 25 Hp (18.5 kW) |
| Air Consumption | 30 cfm at 6 bar |
| Total Power Requirements | 204 Hp (152 kW) |
| Machine Dimensions | Width 2 800 mm |
| Length 5 000 mm | |
| Height 6 000 mm |
Applications
Recommended Usage
Hanger loop blasting systems are designed for efficient surface treatment of suspended metal components through continuous workpiece movement and uniform abrasive exposure. Suitable for complex-shaped and medium to large components, these systems provide effective cleaning, rust removal, descaling, and surface preparation with consistent finishing quality.
Recommended Abrasive Media
Steel Shot
General Cleaning
Steel Grit
Heavy Scale Removal
Cut Wire
Controlled Finishing
Stainless Steel Shot
Stainless Components
Abrasive media selection depends on workpiece material, component shape, surface cleaning requirements, and the required finishing performance.
Need Hanger Loop Blasting Machine?
Contact PT Ferro Servita for machine recommendation, blasting process consultation, spare parts, maintenance support, and pricing information.
Request Inquiry
