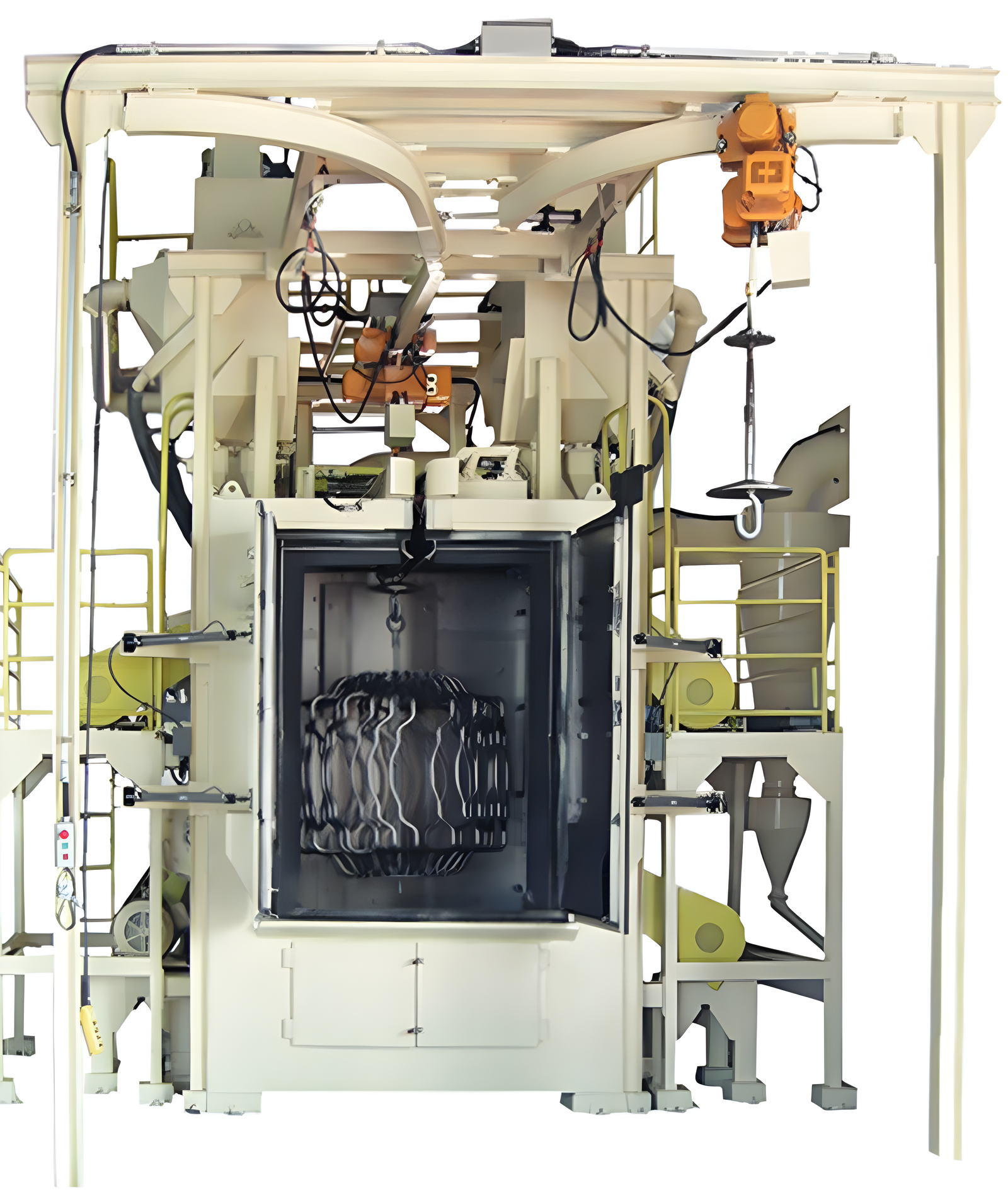

Monorail Hanger Blasting System
Monorail blasting machine is designed for suspended workpieces that require efficient surface cleaning, descaling, deburring, and preparation. The system supports hanger-based handling for larger or irregular components while maintaining stable blasting quality and repeatable production performance.
Product Overview
Monorail blasting machines are suitable for workpieces suspended on hangers and moved through the blasting area. This machine type is commonly used for castings, welded structures, fabricated components, automotive parts, and industrial products requiring reliable surface treatment.
The monorail system helps improve handling efficiency, reduce manual movement, and support continuous or semi-continuous blasting operations. PT Ferro Servita supports machine selection, installation, spare parts, maintenance, and technical consultation.
Main Advantages
Efficient Handling
Designed for suspended components and hanger-based blasting operation.
Stable Cleaning
Supports consistent surface cleaning and preparation results.
High Capacity
Suitable for larger workpieces and heavier production requirements.
Technical Support
Supported by consultation, spare parts, maintenance, and service assistance.
Technical Data
Monorail Specification
| Model Type | TMR-2FT-1TY | TMR-3FT-1TY |
|---|---|---|
| Max. Diameter of Workpiece Hanger | 1 000 mm | 1 000 mm |
| Height of Workpiece Hanger | 1 200 mm | 1 800 mm |
| Max. Loading Weight per Hanger | 1 000 kg | 1 000 kg |
| Number of Blast Wheels & Capacity |
1 × 7.5 Hp (5.5 kW) 1 × 10 Hp (7.5 kW) |
2 × 7.5 Hp (5.5 kW) 1 × 10 Hp (7.5 kW) |
| Air Consumption | 18 cfm at 6 bar | 18 cfm at 6 bar |
| Total Power Requirements | 35.5 Hp (26.5 kW) | 39.5 Hp (29.5 kW) |
| Machine Dimensions | Width 2 000 mm | Width 2 200 mm |
| Length 2 000 mm | Length 2 450 mm | |
| Height 4 400 mm | Height 5 700 mm |
Applications
Recommended Usage
Monorail hanger blasting systems are designed for continuous surface treatment of suspended metal components through automated conveyor movement and uniform abrasive exposure. Suitable for high-volume production environments, these systems provide efficient cleaning, descaling, rust removal, and surface preparation while maintaining consistent finishing quality.
Recommended Abrasive Media
Steel Shot
General Cleaning
Steel Grit
Heavy Scale Removal
Cut Wire
Controlled Finishing
Stainless Steel Shot
Stainless Components
Abrasive media selection depends on workpiece material, production volume, component geometry, cleaning requirements, and desired surface finishing performance.
Need Monorail Blasting Machine?
Contact PT Ferro Servita for machine recommendation, blasting process consultation, spare parts, maintenance support, and pricing information.
Request Inquiry
