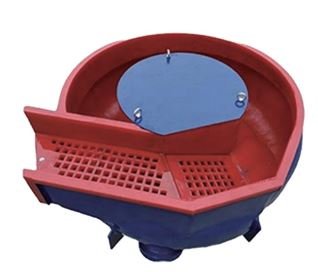

Vibratory Bowl Machine Mass Finishing System
Vibratory Bowl Machine is used for deburring, polishing, smoothing, cleaning, and edge radiusing of small to medium components. The machine works together with finishing media and compounds to produce consistent surface quality in mass finishing operations.
Product Overview
Vibratory finishing improves surface quality through controlled vibration of components, media, water, and finishing compounds inside a bowl-shaped chamber. This process is suitable for batch finishing and is widely used for deburring, cleaning, polishing, smoothing, and edge preparation.
PT Ferro Servita supports customers with machine selection, media recommendation, compound selection, installation support, and after-sales technical service for reliable surface finishing results.
Main Advantages
High Finishing Efficiency
Supports efficient batch finishing for small and medium components.
Uniform Surface Quality
Helps produce consistent deburring, smoothing, and polishing results.
Flexible Media Use
Compatible with ceramic, porcelain, plastic, corncob, walnut, and compound processes.
Production Support
Suitable for continuous production, maintenance, and finishing workflow improvement.
Technical Data
Product Specification
| MODEL | Volume | Max overall Dimension A | Motor installation tube B | Process bowl width C | Tunnel depth F | Machine height H | Motor power | Weight |
|---|---|---|---|---|---|---|---|---|
| L | MM | MM | MM | MM | MM | KW | KG | |
| AB(B)100 | 100 | 1020 | 470 | 216 | 330 | 860 | 1.5/2.2 | 260 |
| AB(B)200 | 200 | 1200 | 625 | 220 | 385 | 915 | 3 | 420 |
| AB(B)300 | 300 | 1310 | 620 | 270 | 390 | 900 | 3.7/5 | 600 |
| AB(B)400 | 400 | 1410 | 633 | 320 | 450 | 1040 | 5 | 850 |
| AB(B)600 | 620 | 1820 | 610 | 370 | 490 | 1140 | 5.5/7.5 | 1000 |
| AB(B)900 | 920 | 1930 | 610 | 560 | 575 | 1350 | 11 | 1800 |
| AB(B)1200 | 1250 | 1930 | 610 | 560 | 575 | 1350 | 11 | 2200 |
| AB(B)1500 | 1500 | 2120 | 690 | 630 | 630 | 1420 | 15 | 2400 |
| AB(B)2500 | 2500 | 2300 | 860 | 650 | 850 | 1350 | 18.5 | 3000 |

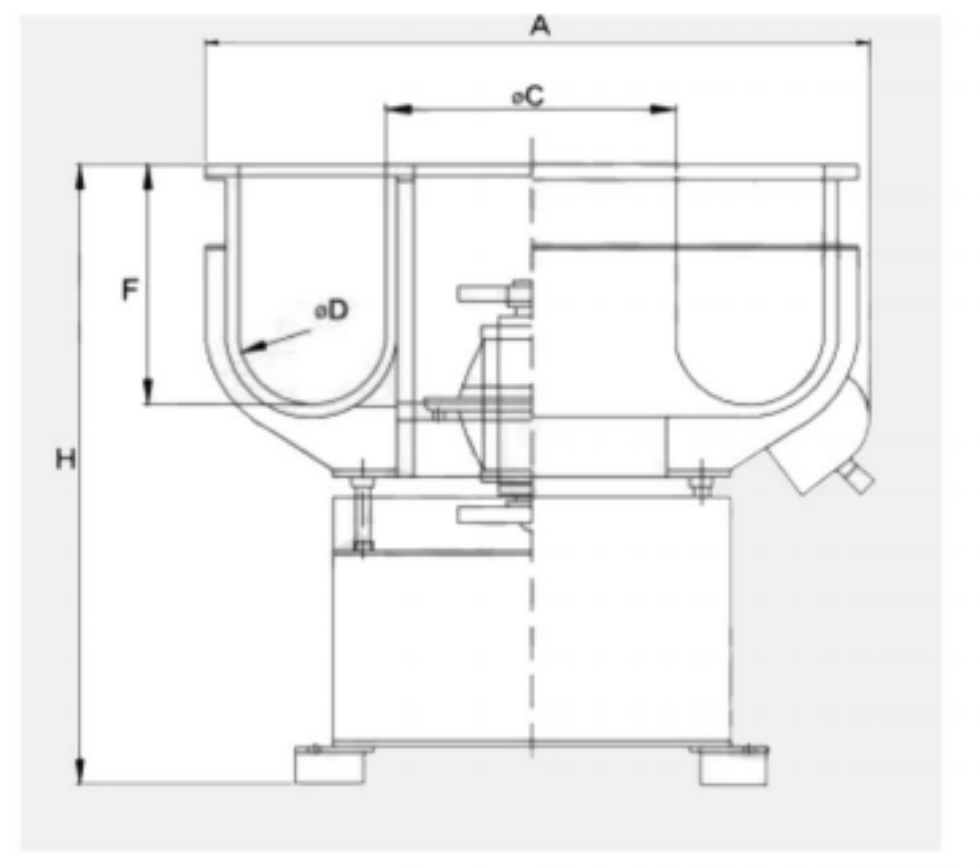

Engineering Drawing
General Arrangement Drawing
Overall machine dimensions and reference layout.
* Dimensions shown are for reference only and may be changed without prior notice.
Applications
Recommended Usage
- ✓ Deburring metal parts
- ✓ Surface polishing
- ✓ Smoothing and cleaning components
- ✓ Edge radiusing
- ✓ Mass finishing process
- ✓ Automotive industry
- ✓ Aerospace components
- ✓ Electronics parts
- ✓ Precision manufacturing
- ✓ General engineering components
