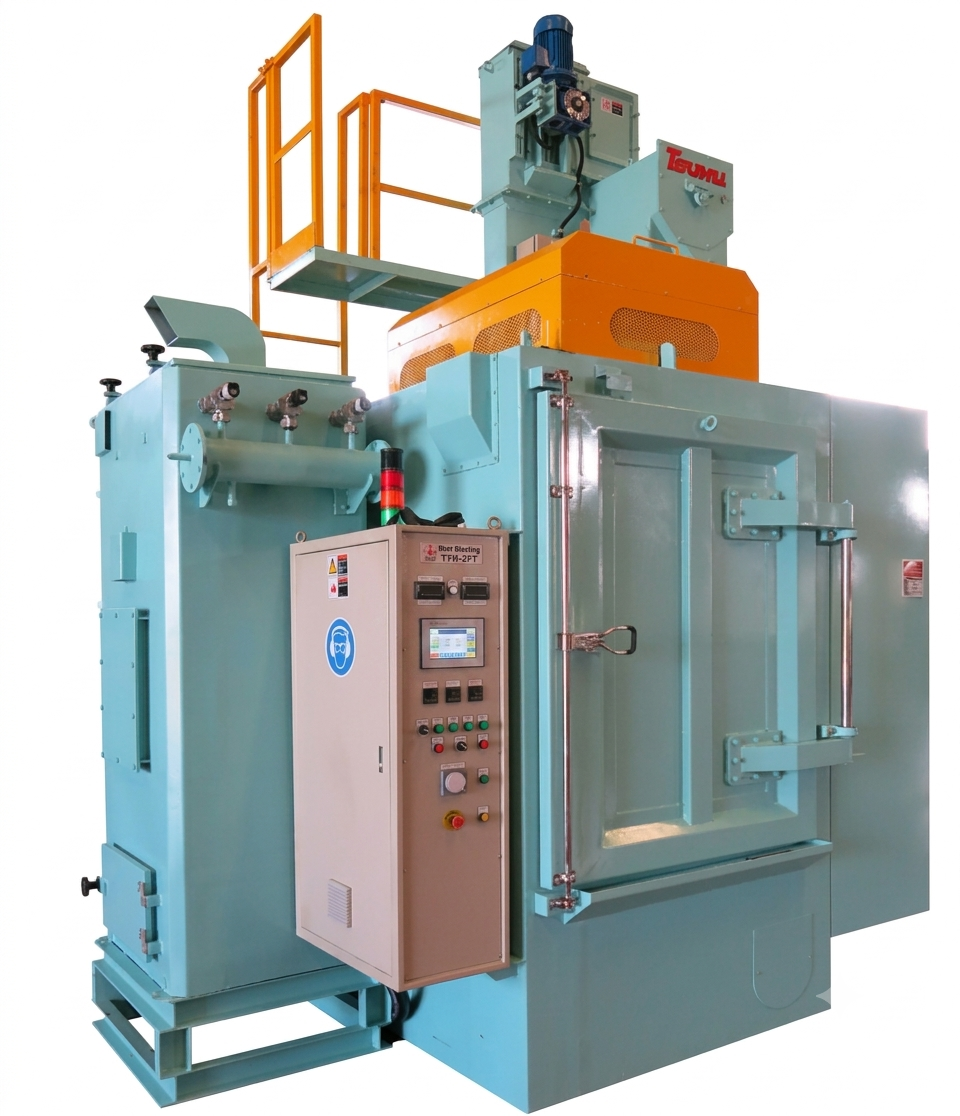

Jig Stripper Jig Stripper Blasting System
Jig Stripper blasting machine is designed for hanger-based surface cleaning, descaling, deburring, and preparation of industrial workpieces. The system supports stable blasting performance for parts mounted on jigs or hangers, helping improve surface quality, productivity, and repeatability.
Product Overview
Jig Stripper blasting machines are suitable for workpieces mounted on jigs or hangers and processed inside the blasting chamber. This machine type is commonly used for die-casting workpieces, fabricated components, automotive parts, and industrial products requiring reliable surface cleaning and preparation.
The jig stripper system helps improve blasting consistency, reduce manual cleaning work, and support efficient production operation. PT Ferro Servita supports machine selection, installation, spare parts, maintenance, and technical consultation.
Main Advantages
Efficient Handling
Designed for suspended components and hanger-based blasting operation.
Stable Cleaning
Supports consistent surface cleaning and preparation results.
High Capacity
Suitable for larger workpieces and heavier production requirements.
Technical Support
Supported by consultation, spare parts, maintenance, and service assistance.
Technical Data
Jig Stripper Specification
| Model Type | TJS-2MR-0811-D3J |
|---|---|
| Max. Diameter of Workpiece Hanger | 800 mm |
| Height of Workpiece Hanger | 1 100 mm |
| Max. Loading Weight per Hanger | 75 kg |
| Average Cycle Time | 240 sec |
| Number of Blast Wheels & Capacity | 10 Hp (5.5 kW) & 7.5 Hp (5.5 kW) |
| Air Consumption | 25 cfm at 6 bar |
| Total Power Requirements | 24.5 Hp (18.15 kW) |
| Machine Dimensions | Width 1 400 mm |
| Length 1 580 mm | |
| Height 4 400 mm |
Applications
Recommended Usage
Jig stripper solutions are designed for effective cleaning and surface preparation of production fixtures, removing accumulated paint, coating residues, and contaminants from reusable jigs. These systems help maintain fixture performance, extend service life, and support efficient maintenance operations in industrial production environments.
Recommended Abrasive Media
Steel Shot
Surface Cleaning
Steel Grit
Coating Removal
Cut Wire
Controlled Cleaning
Stainless Steel Shot
Sensitive Components
Abrasive media selection depends on jig material, type of residue or coating, cleaning requirements, and the required surface condition after stripping process.
Need Jig Stripper Blasting Machine?
Contact PT Ferro Servita for jig stripper machine recommendation, blasting process consultation, spare parts, maintenance support, and pricing information.
Request Inquiry
