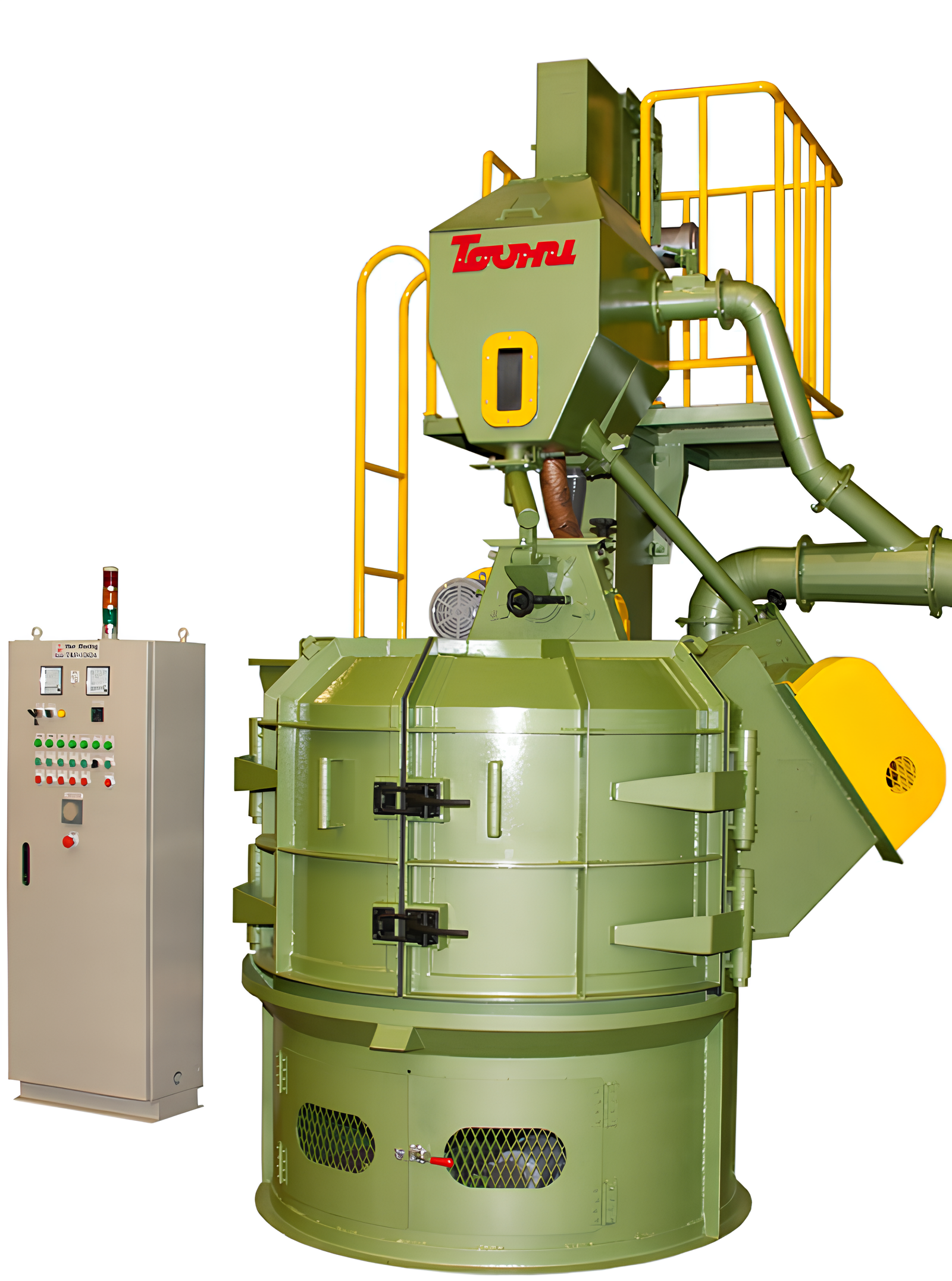

Rotary Table Compact Blasting System
Rotary Table blasting machine is designed for cleaning, descaling, deburring, and surface preparation of small to medium components. The rotating table supports consistent exposure to the blasting stream for stable and repeatable surface treatment results.
Product Overview
Rotary Table machines are suitable for batch blasting operations where components are placed on a rotating work table. This design helps achieve uniform blasting coverage and improves surface quality before painting, coating, or further processing.
PT Ferro Servita provides equipment consultation, machine selection support, spare parts, and technical assistance to help customers achieve reliable production performance and consistent finishing results.
Main Advantages
Uniform Blasting
Rotating table supports consistent exposure and repeatable surface finish.
Compact Operation
Suitable for small to medium parts with efficient use of production space.
Process Efficiency
Helps improve cleaning speed, consistency, and preparation quality.
Technical Support
Supported by product consultation, spare parts, and after-sales assistance.
Technical Data
Product Specification
| Model Type | TRP-1606FT | TRP-1806FT |
|---|---|---|
| Turntable Diameter | 1 600 mm | 1 800 mm |
| Working Table Height | 800 mm | 1 500 mm |
| Max. Workpiece Weight | 200 kg | 200 kg |
| Table Rotation Speed | 4 rpm | 4 rpm |
| Number of Blast Wheels & Capacity | 2 × 7.5 Hp (5.5 kW) | 2 × 7.5 Hp (5.5 kW) |
| Air Consumption | 12 cfm at 6 bar | 12 cfm at 6 bar |
| Total Power Requirements | 23 Hp (17 kW) | 25 Hp (18.5 kW) |
| Machine Dimensions | Width 1 600 mm | Width 1 900 mm |
| Length 2 020 mm | Length 2 900 mm | |
| Height 4 355 mm | Height 5 100 mm |
Applications
Recommended Usage
Rotary table blasting systems are designed for efficient surface treatment of metal components through controlled table rotation and uniform abrasive exposure. Suitable for heavy, large, and complex-shaped workpieces, these systems provide effective cleaning, rust removal, descaling, and surface preparation with consistent finishing results for industrial applications.
Recommended Abrasive Media
Steel Shot
General Cleaning
Steel Grit
Heavy Scale Removal
Cut Wire
Controlled Finishing
Stainless Steel Shot
Stainless Components
Abrasive media selection can be adjusted according to workpiece size, material characteristics, cleaning requirements, and desired surface finishing quality.
Need Rotary Table for Your Production Line?
Contact PT Ferro Servita for machine recommendation, blasting process consultation, spare parts, maintenance support, and pricing information.
Request Inquiry
